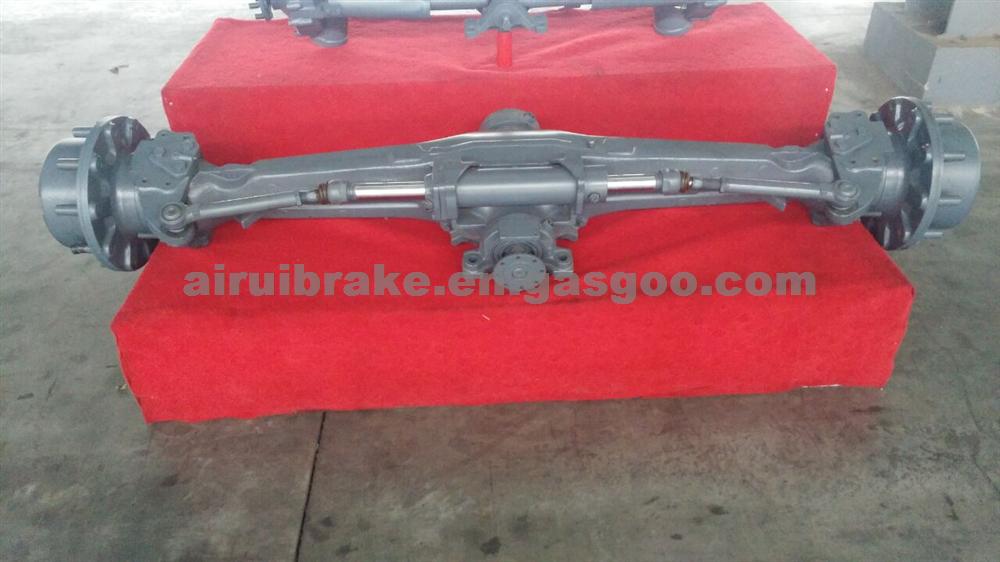

Heavy Truck And Bus Front Axle Of Tractor

Heavy Truck And Bus Front Axle Of Tractor
Heavy Truck And Bus Front Axle Of Tractor
Previous
Next
OEM No/Model:

HC554A

Minimum Order:

10Set/Sets

Export Ratio:

71% - 80%

Quality Certificate:

TS16949

Samples:

Charge

Sample Price:

1000

Place of Region:

Weifang,China

Payment Terms:

L/C,T/T,CASH,D/P

Price Terms:

FOB

Delivery Port:

Qingdao

Delivery Time:

40 Days

Market Type:

After Market

Packing:

Palllet

Current Export Market:

North America,Oceania

Product Details

Product Name:

Heavy Truck And Bus Front Axle Of Tractor

Product Attribute:

Position:Front

Application:

Tractor or farm machine

Product Description:

 Front axle main parameter
   Model No./technical parameter HC554A HC554E HC704A HC704E HC804A HC804B HC1354/1454 HC1204B    HC1204A HC1654 HC3WP-500A
     Transmission ratio 12.773 12.713 12.773 12.713 21.125 16.25 17.727 17.727 21.125 17.574 18.545
Application horsepower TB40-70 TB40-70 TA70-90 TA70-90 TD90-110 TD90-110 TF120-160 TF120-160 TF120-150 TG160-180
Inbound spline count m=2 m=2 m=2 m=2 m=2.75 m=2 m=2 m=2 m=2.75 m=1.5 m=1.75
z=12 z=12 z=12 z=12 z=10 z=14 z=14 z=14 z=10 z=21 z=10
a=30º a=30º a=30º a=30º a=30º a=30º a=30º a=30º a=30º a=30º a=30º
Transmission direction    clockwise  clockwise  clockwise  clockwise  clockwise  clockwise  clockwise  clockwise  clockwise  clockwise  clockwise
  6-M14*1.5 6-M14*1.5 6-M16*1.5 6-M16*1.5 6-M16*1.5 6-M16*1.5 6-M16*1.5 6-M16*1.5 6-M16*1.5 6-M22*1.5 6-M14*52
          hub or 101*161 101*161 130*165 130*165 290*330 290*330 290*330 290*330 290*330 280*335 80*120
        Spoke distance 1389±1 1389±1 1576±1 1576±1 1773 1773 1773 1924 1924±3 1950±1 1470
      Angle of lock 50º
  11º
kg/load bearing 1500 1500 1660 1660 2500 2500 2500 3000 3000 7500
  M=6  23/10 M=6  23/10 M=6  23/10 M=6  23/10 M=5.69 39/9 M=5.6 40/12 M=5.6 40/11 M=5.6 40/11 M=5.69 39/9 M=6.8 33/13 M=4.5  20/8
  M=6  42/11 M6  38/10 M6 42/11 M6 38/10 M3.25 62/16 M3.25 62/16 M3.25 62/16 M3.25 62/16 M3.25 62/16 M3  77/13 M4  48/10
  Z=16/11   M=6.5             M=3.9 Z=17/11
Turnaround mode                     Independent oil way/all hydraulic front wheel steering     Mid-mounted oil cylinder
Front-wheel camber 2º 1º 1º30' 2º
Kingpin inclination 12.5º 7º30' 7º 12º
Kingpin inclination 0º 10º 6º 0º
    Toe-in of front wheel 4-8mm 0-5mm 0-2mm 0-2mm
Central oil tank volume/L 6 6 6 6 6.1 6.1 6.1 7.5 7.5 8
L         2.4 2.4 2.4 2.4 2.4 2.4
GW 230 230 248 248 298 298 298 300 300 398
Sun wheel speed ratio calculate formula62/16+1*40/12-4.875*3.333=16.25

Heavy Truck And Bus Front Axle Of Tractor
Heavy Truck And Bus Front Axle Of Tractor
